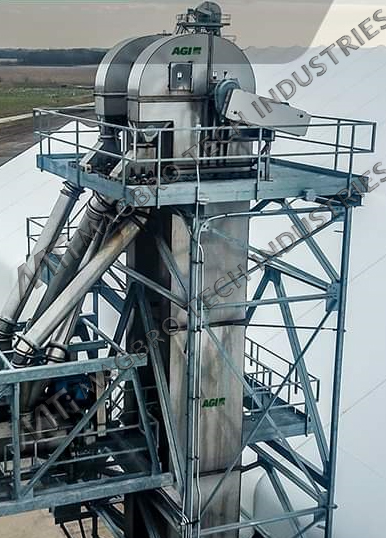

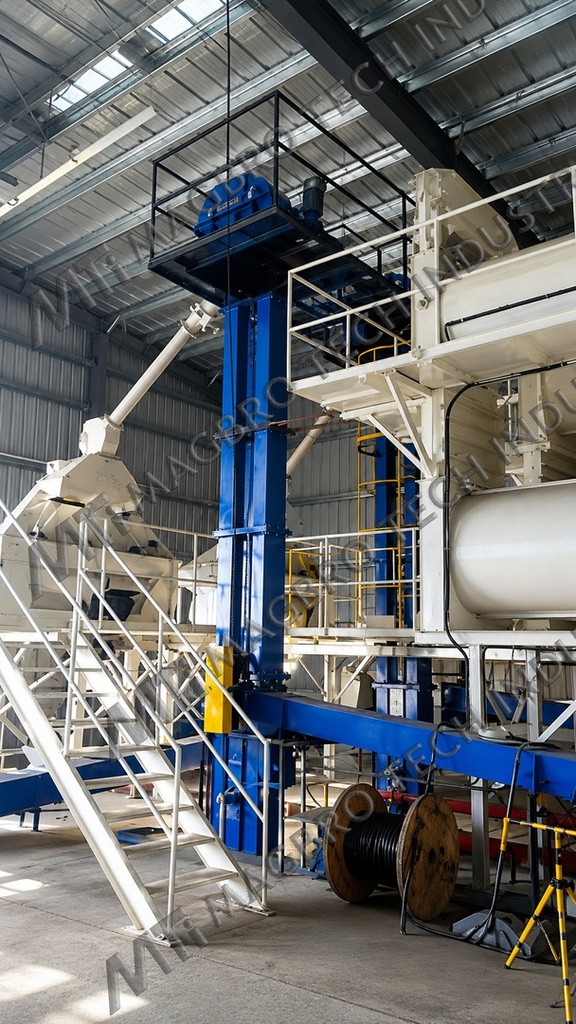

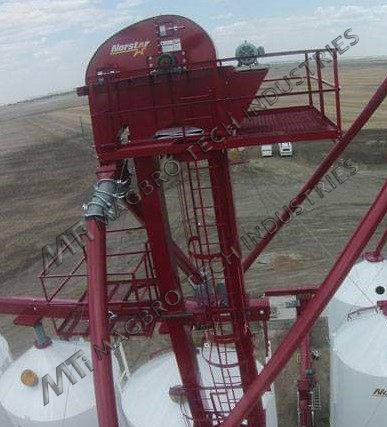

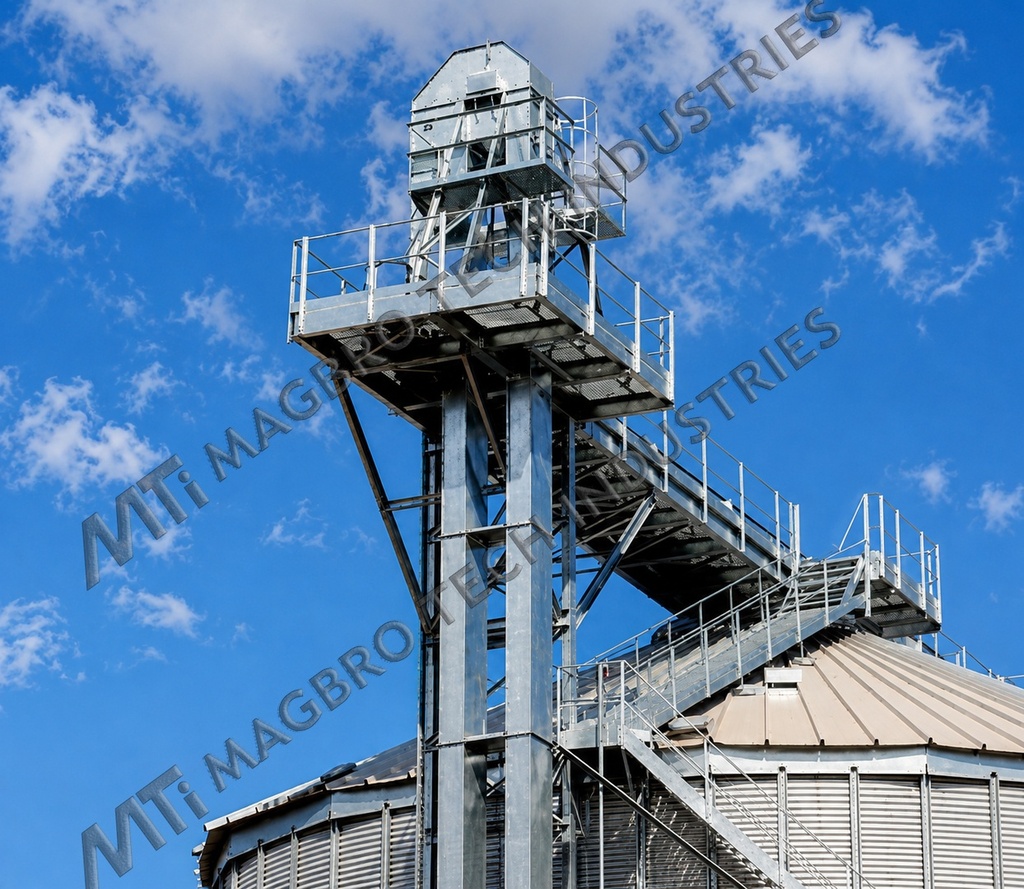

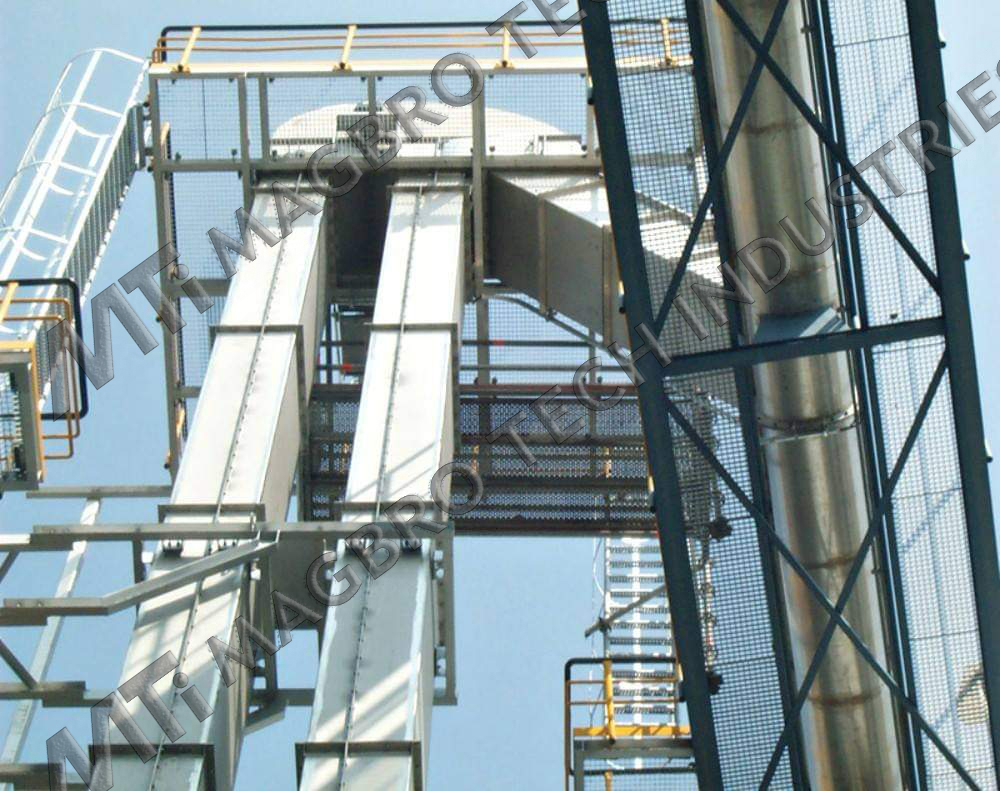

A Bucket Elevator is a vertical conveying system used to lift bulk materials from one level to another using a series of buckets mounted on a belt or chain. It is one of the most efficient and space-saving solutions for vertical material handling in industrial plants.

Magbro Tech Industries manufactures heavy-duty Bucket Elevators for continuous, reliable, and dust-controlled operation. Our elevators are available in Belt Type and Chain Type configurations and can be customized according to lifting height, capacity, material characteristics, and plant layout.

Our Bucket Elevators are manufactured using heavy-duty fabricated steel construction, precision-machined head and boot sections, wear-resistant buckets, high-strength belts or chains, premium bearings, and efficient drive systems.

Designed for smooth operation and minimal material degradation, our elevators provide high conveying efficiency while occupying minimal floor space. Optional features such as inspection doors, backstop devices, belt alignment sensors, and explosion vents are available to meet specific application requirements.

Working Principle

The Bucket Elevator operates on a continuous lifting principle.

1. Material enters the boot section through the inlet.
2. Buckets attached to a belt or chain scoop the material.
3. The drive unit lifts the loaded buckets vertically.
4. At the head section, centrifugal or gravity discharge empties the material.
5. Empty buckets return to the boot section for the next cycle.

This continuous process ensures efficient and uninterrupted vertical conveying.
